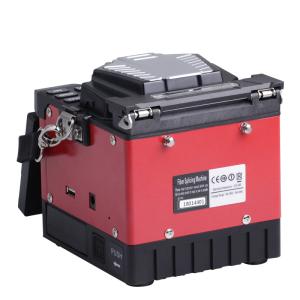

Handheld Fusion Splicing Machine with 8s Splicing Time 5800mAh Battery and 40 Groups Splicing Program

Product Categories

NEW LIGHT OPTICS TECHNOLOGY LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	domectic
Model Number :	F-97
Certification :	CE,ISO
Price :	1~30
Payment Terms :	T/T,Western Union,MoneyGram,paypal
Supply Ability :	1000000
Delivery Time :	7 working days

Add to Cart

F-97 smal handheld Fiber Optical core to core digital alignment Fusion Splicing Machine

Features

●Handheld, Small, Light

●Industrial standard screen

●Various colors are available

●Core to core digital alignment

●8s splicing stime, 26s tube heating time

●5800mAh and pluggable Li-battery, Typical 200 cycles

●ARC calibrated by temperature and air pressure automatically

●Apply to bare fibers, indoor cables and jumper wires splicing

Applicable fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Fiber count	Single
Applicable fiber dimensions	Cladding diameter: 80 -150μm, Coating diameter: 160 – 900μm
Typical splice loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss	>60db
Fiber cleaved length	10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-heating	Available
Typical splicing time	8 seconds
Tube heating time	26 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification	250X(X or Y view), 125X(X and Y view)
Viewing method and display	2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easier operation
Battery capacity	5800mAh, typical 200 cycles(splice and tube heat), pluggable inner Li-battery
Power supply	Adaptor, input: AC100-240V(50/60HZ)
Electrode life	More than 4000 ARC discharges, can be replaced conveniently
Terminals	USB 2.0 port, for uploading splice results and upgrading software
Operating condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃～+50℃;Wind speed: max 15m/s
Dimension	149mm(L)x120mm(W)x127mm(H)
Weight	1.9kg including battery
Package	Packed in carton with protection foam, Size 43cm37cm27cm, G.W.6.5kg

Details Display

splicing display

Additional tools
